This blog requires the readers to understand the 7-layered OSI model, 4-layered DoD (TCP/IP) model, and internet and transport protocols. This blog will not discuss the NIC’s internal working and transmitting/receiving of packets; this will only deal with the kernel side.
Anyone who has studied computer networking knows that network interfaces receive packets, which go through various layers. In theory, that’s pretty easy to understand, but it leaves the person with many questions :
- How does the machine know it has received a packet?
- What does “travelling” through the layers mean in the code?
- How do firewalls perform operations on these packets?
- How do applications “receive” packets to their file descriptors?
- What are sockets, and how are they implemented?
Bugged by these same doubts, I will explore the source code to answer these questions from a student’s perspective, going to as much depth as needed and not going down the rabbit hole. Networking in the Linux kernel is much more than these blogs cover. This complex code has undergone many improvements and optimizations, bringing Linux to the forefront of cloud technologies.
The network stacks are logical layers that perform different operations and handle other responsibilities in receiving and transmitting packets. The Linux Kernel implements four layers1: Link Layer (Ethernet), Network Layer (IP, ARP), Transport Layer (TCP, UDP, etc.), and Session Layer (sockets and files).

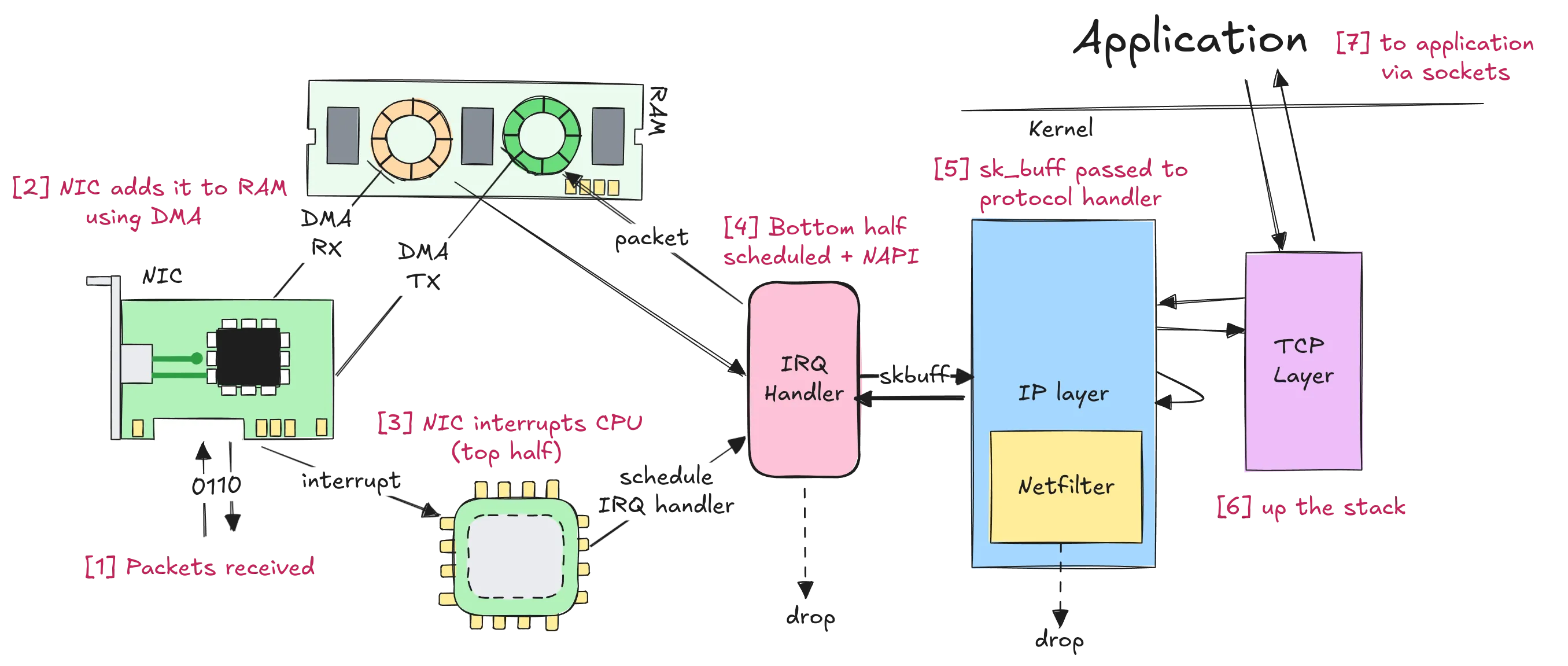

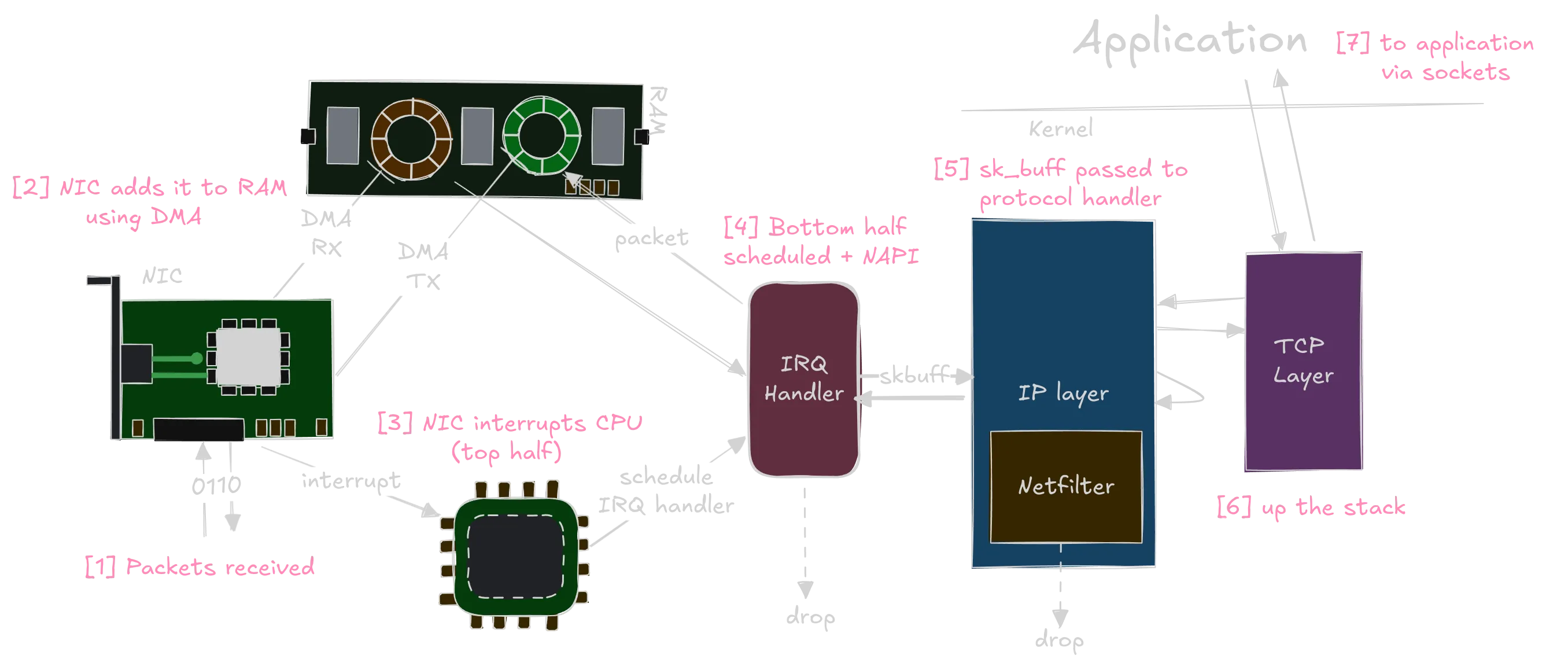

Path of a received packet in the Linux Kernel
Figure 1 summarises the flow of the packet in the receive path. To make it easier for me and the readers to understand, I have divided the flow into multiple sections, each with a dedicated blog post. The sections are :
- Binary to packet (sk_buff)
- Bridging and IP traversal
- Transport Layer traversal
- Sockets
Binary to packet
-
The NIC (Network Interface Card) receives and copies the packet to a ring buffer using Direct Memory Access (don’t worry, I will discuss these in their respective blogs).
-
After copying the packet to the buffer, it informs the CPU about it (see interrupts). The CPU acknowledges the interrupt, runs the registered Hardware Interrupt Handler, and schedules NAPI (which schedules the Bottom Half or SoftIRQ handler for
NET_RX_SOFTIRQ). -
The SoftIRQ handler consumes the packet from the DMA’ed ring buffer (in the first step) using the device’s registered NAPI poll handler and allocates a data structure called sk_buff to hold it, which is used everywhere in the networking kernel subsystem.
-
It then runs CRC checks, processes VLAN tags, passes packets to TAPs and other sniffers, calls XDP hooks and invokes the entry function of the next layer (example:
ip_rcvfor the IP layer) with the createdskb.We call this process “sending the packet up the stack.”
A detailed blog with code snippets on this section is available at: To be updated
Bridging and IP Filtering
<To be updated after detailed blog on the previous section>
Transport Layer Traversal
<To be updated after detailed blog on the previous section>
Sockets
<To be updated after detailed blog on the previous section>
