ELF Files

TODO: Create manim videos / GIFs to explain the binary to ELF conversion and other concepts like segment-section mapping. Add the GIFs/videos as TabItems in the tab with the source code.

Note

The notes below is based on the Tool Interface Standard (TIS) and Executable and Linking Format (ELF) Specification Version 1.2 — TIS Committee, May 1995. Also the notes make reference to dynamic linking concepts like the Hash Symbol Table, etc. So it is better to get a basic idea on how dynamic linking works.

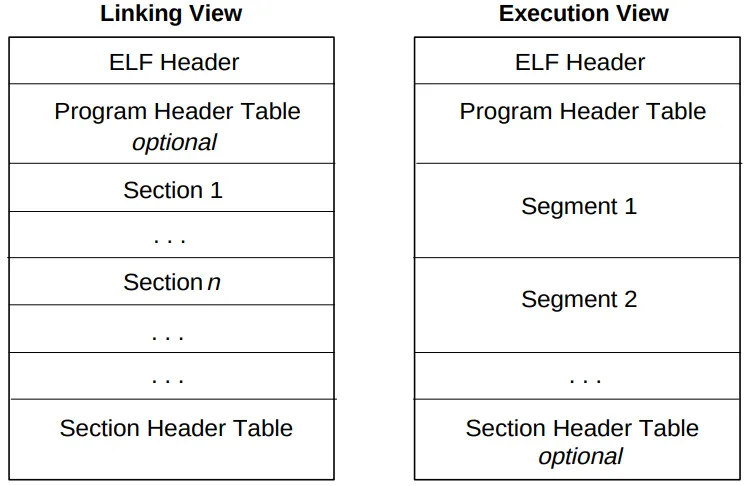

Object files have different Views / Layout for a file that is participating in linking and a different for execution. Both have the ELF header which describes the file.

ELF Header	Describes the layout of the File. Only this header has a fixed position (beginning) in the file, other sections or segments can be in any order
Program Header Table	Tells the system how to create the process image. This is mandatory for executables, and optional for shared objects.
Section Header Table	Gives information about the type, size and the location of different sections. This is optional in executables and mandatory in shared objects.
Section	Hold the bulk of information of the shared / link object — instructions, data, symbol tables, relocation information.
Segment	Collection of sections that are loaded into memory.

To avoid repeating good articles and the man page, I won’t go into the detailed discussion of each field. I will discuss the ones that I feel are relevant and important for Dynamic Linking and execution of a program.

ELF Header

From the manpage and ELF spec, the header has the following C structure, the fields are usually aligned to 4 bytes:

#define EI_NIDENT 16

// N denotes the bit, 32 for 32-bit, 64 for 64-bit
typedef struct {
	/*
		e_ident:
			EI_MAGIC0 - EI_MAGIC3 (Magic bytes) : 7xf, 'E', 'L', 'F'
			EI_CLASS - ELFCLASSNONE (0), ELFCLASS32 (1), ELFCLASS64 (2)
			EI_DATA - ELFDATANONE (0), ELFDATA2LSB (1), ELFDATA2MSB(2)
			EI_VERSION - EV_CURRENT
			EI_OSABI - ELFOSABI_LINUX, etc.
			EI_ABIVERSION -
			EI_PAD - Pad Bytes
	*/
	unsigned char e_ident[EI_NIDENT];
	/*
		Type of obj file = ET_NONE(0), ET_REL (1), ET_EXEC(2),
		ET_DYN(3), ET_CORE(4), ET_LOPROC(0xff00), ET_HIPROC (0xffff)
	*/
	uint16_t      e_type;
	// Machine Info: EM_X86_64 (0x003e) for AMD x86-64, etc. See elf(5).
	uint16_t      e_machine;
	uint32_t      e_version;
	// Virtual address to which the system transfers control (to start the process).
	ElfN_Addr     e_entry;
	// Program header offset in bytes from the start of the file/
	ElfN_Off      e_phoff;
	// Section header offset in bytes from the start of the file.
	ElfN_Off      e_shoff;
	// Processor specific flags - EF_*
	uint32_t      e_flags;
	// ELF Header size in bytes
	uint16_t      e_ehsize;
	// Size per entry of the program header
	uint16_t      e_phentsize;
	// Number of entries, upto a maximum of 0xffff, if more, the real value is
	// present in sh_info. See elf(5).
	uint16_t      e_phnum;
	// Section header entry size
	uint16_t      e_shentsize;
	// Number of entries in section header
	uint16_t      e_shnum;
	// Section header table index of the entry associated
	// with section name string table.
	uint16_t      e_shstrndx;
} ElfN_Ehdr;

Program Headers

Program headers are meaningful only for executables and shared object files, because, these describe segments / other information required to prepare the program for execution. Each segment contains one or more sections.

/* Program Header */
typedef struct {
	/*
	The type of segment this program header describes:
	PT_NULL - Unused, ignored.
	PT_LOAD - loadable segment, described by `p_filesz` and `p_memsz`, appear in
	          ascending order, sorted on `p_vaddr` field.
	PT_DYNAMIC - Dynamic Linking information, read later sections for details.
	PT_INTERP - Null-terminated pathname of the interpreter.
	PT_NOTE - Location for Notes
	PT_SHLIB - Reserved but unspeicifed.
	PT_HDR - If present, specifies location and size of the program
	         header itself.
	PT_GNU_STACK - GNU Extension used by Linux Kernel to control the state
	               state of the stack via p_flags.
	*/
	uint32_t   p_type;
	// Bitmask of relevant segment - PF_X, PF_W, PF_R (Execute, Write and Read)
	uint32_t   p_flags;
	// Offset in bytes from the start of file to the first byte of the segment.
	Elf64_Off  p_offset;
	// Virtual Address of the segment's first byte
	Elf64_Addr p_vaddr;
	// Physical Address of the segment's first byte (for systems
	// with physical addressing).
	Elf64_Addr p_paddr;
	// Size in bytes in the file image
	uint64_t   p_filesz;
	// Size in bytes in the memory image
	uint64_t   p_memsz;
	// Value to which the segment is aligned
	uint64_t   p_align;
} Elf64_Phdr;

Sections

Section Header

The section header table is an array of struct Elf46_Shdr that helps one to locate all the sections in the file.

• A section header table index is a subscript into this array. Some section header table indices are reserved — the initial entry and indices between SHN_LORESERVE and SHN_HIRESERVE . An object files does not have sections for these special indices:
  • SHN_UNDEF - undefine / irrelevant / missing or meaningless section
  • SHN_LORESERVE, SHN_HIRESERVE - lower and upper bound of reserved indices
  • SHN_LOPROC, SHN_HIPROC - Values in the range [SHN_LOPROC, SHN_HIPROC] is reserved for processor semantics.
  • SHN_ABS - Absolute value for the reference. Eg - a symbol defined relative to section number SHN_ABS has an absolute value and is not affected by relocation.
  • SHN_COMMON - Common symbols, like unallocated C external variables.

/* Section Header */
typedef struct {
	// Name of the section, since its an uint, the value here is the index to the
	// section header string table section, which gives the location of
	// NULL-terminated string.
	uint32_t   sh_name;
	/* Section's content:
		SHT_NULL - Inactive section
		SHT_PROGBITS - Section holds info defined by the program
		SHT_SYMTAB - Holds symbol table
		SHT_STRTAB - Section holds a string table, can be multiple such sections
		SHT_RELA - Relocation offset _with_ explicit addends
		SHT_HASH - Symbol Hash Table, used in Dynamic Linking
		SHT_NOTE - Section holds notes
		SHT_NOBITS - Occupies no space on the file.
		SHT_REL - Relocation offset _without_ explicit addends ??
		SHT_SHLIB - unspecified semantics
		SHT_DYNSYM - Minimal set of Dynamic Linking symbols
		...
	*/
	uint32_t   sh_type;
	// SHF_WRITE, SHF_ALLOC, SHF_EXECINSTR, SHF_SHF_MASKPROC (Processor spec) and
	// more. Some are not yet documented in the man page.
	uint64_t   sh_flags;
	// If non-zero, contains the address at which the first byte of the segment
	// should be present in the _memory_ image
	Elf64_Addr sh_addr;
	// Offset from the beginning of the file to the first byte of the section
	Elf64_Off  sh_offset;
	// The size of section in bytes in the _file_
	uint64_t   sh_size;
	// Section header table index link
	uint32_t   sh_link;
	// Extra info
	uint32_t   sh_info;
	// alignment required by the section, 0/1 means no constraint,
	// power of two values give the alignment constraint
	uint64_t   sh_addralign;
	// entry size of fields if the section contains multiple entries - like a
	// symbol table
	uint64_t   sh_entsize;
} Elf64_Shdr;

Important Sections in the ELF File

Name	Description	Section Type	Attribute Type
.bss	Uninitialised data that contributes to program’s memory image, initialised to zeros when program runs.	SHT_NOBITS	SHF_ALLOC, SHF_WRITE
.text	Contains executable instructions of the program	SHT_PROGBITS	SHF_ALLOC , SHF_EXECINSTR
.data, .data1	Initialised data which contribute to memory	SHT_PROGBITS	SHF_ALLOC, SHF_WRITE
.rodata, .rodata1	Read only data , that contributes to nonwritable segment.	SHT_PROGBITS	SHF_ALLOC
.init, .fini	Initialisation and termination code	SHT_PROGBITS	SHF_ALLOC, SHF_EXECINSTR
.got, .plt	Holds the global offset table / procedure linkage table	SHT_PROGBITS	Processor specific
.symtab	Symbol table	SHT_SYMTAB	SHF_ALLOC if the loadable segment has symbol table.
.debug	Holds information for symbol debugging	SHT_PROGBITS	None
.interp	Holds the pathname of program interpreter	SHT_PROGBITS	SHF_ALLOC
.hash	Symbol hash table used in dynamic linking	SHT_HASH	SHF_ALLOC
.dynamic	Holds dynamic linking information	SHT_DYNAMIC	SHF-ALLOC but SHF_WRITE depends on the processor
.dynstr	Strings needed for dynamic linking	SHT_STRTAB	SHF_ALLOC
.dynsym	Dynamic Linking symbol table	SHT_DYNSYM	SHF_ALLOC
.line	Line number information for symbol debugging	SHT_PROGBITS	None
.note.*	Holds various notes	SHT_NOTE / SHT_PROGBITS depending on the section name	Depends on the section name. See elf(5).
.relName, .relaName	Contains relocation information, the Name is given by the section to which relocations apply, like .rel.text or .rela.text.	SHT_RELA	SHF_ALLOC if the relocation segment is loadable
.shstrtab	Holds sections names.	SHT_STRTAB	None
.strtab	Strings, commonly associated with symbol table entries	SHT_STRTAB	If the file has loadable segment that includes symbol string table, then SHF_ALLOC.

Other important structures

1. Symbol and String tables — address of name, value, size, type of binding (info), symbol visibility.
2. Relocation Tables (Rel, Rela) — gives the offset, info (symbol table index wrt which relocation must be made and the type of relocation) and addend (in case of rela).
3. Dynamic Tags (DYN) — dynamic tag and value / pointer (virtual address). The tag can be such as : DT_HASH, DT_RELA, DT_INIT, DT_FINI , etc. which may give the Virtual address of such table / table entry / functions, etc. Some other commonly used tags are: DT_NEEDED, DT_SONAME, DT_RUNPATH, DT_SYMTAB, DT_STRTAB, DT_GNU_HASH.

For more information, please refer to the ELF manpage in the resources below.
